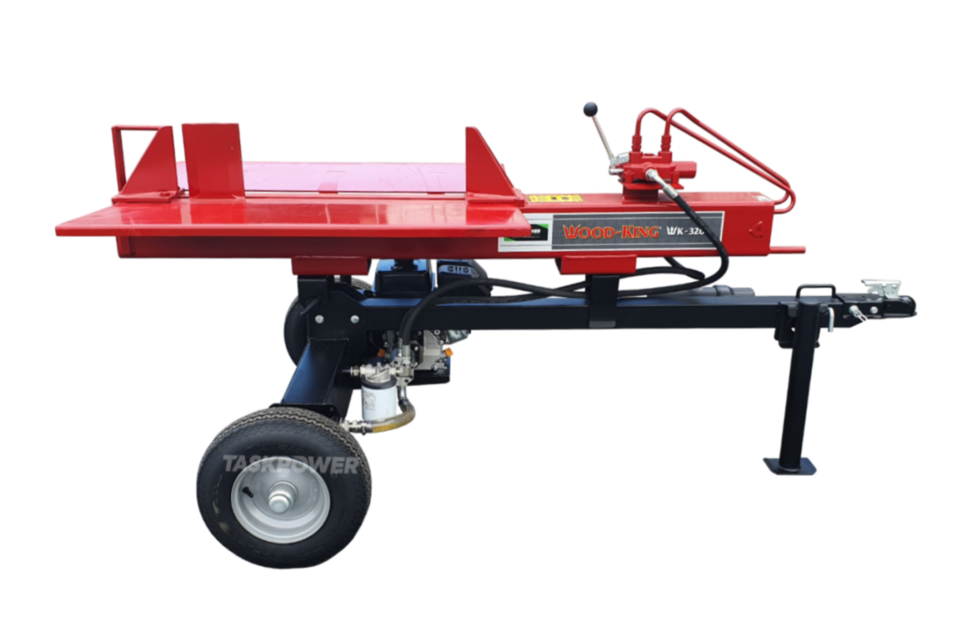

2-Way Motorised Log Splitter
Excellent value for money with vertical / horizontal splitting options. With the speed and efficiency of the Split-Fire models, but at a more affordable price, the Liberator LS3265 is designed to suit those who are looking for more than just a standard log splitter, but aren't prepared for the higher cost of the genuine Split-Fire models.
Includes hydraulic and engine oils, and free delivery to nearest Mainfreight or Toll freight depot.
FOR LEGAL SAFETY REASONS THIS UNIT IS NOT RECOMMENDED FOR HIRE OR BUSINESS USE.
See more below:
Specifications
Splitting Force: 22 Tons
Cycle Time: 10.5 Seconds Return (5.3s per split)
Pump: 2 Stage, 13 Gallons / Minute
Stroke Length: 24” / 600mm
Cylinder Diameter: 3.5" / 113mm
Knife Height: 8" / 200mm, Heat Treated Steel
Engine: 6.5hp, 196cc Kohler OHV
Wheels: 8" Rims, Highway Tyres
Wood Type: Macrocarpa, pine, straight-grain gum, many other timbers
Warranty
Domestic Warranty: 2yrs on Frame & Engine, 1yr on Hydraulics
Key Features
2-way splitting system
Split more wood in less time with less effort! The hydraulic ram is inside a steel frame with the knife protruding up between 2 "V" shaped anvils. This means the knife is always in the splitting position removing the time wasted during the return cycle.
Box Section Beam
Eliminate the possibilities of any bending with the unique box-section beam.
"V"-shaped anvils
The "V"-shaped anvil design focuses the tonnage on the centre of the log and enables the log to effortlessly hinge open. This makes for a far safer splitting experience by preventing dangerous "flyouts" of tensioned wood.

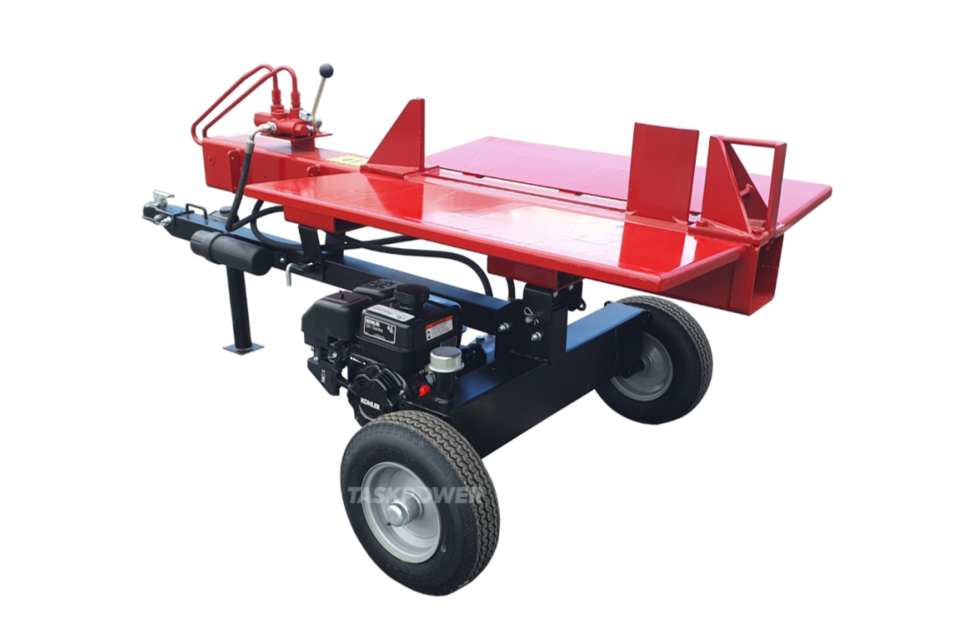

Large Flat Tables
Comes complete with large flat tables for a greater working area and more efficient operation.
Genuine Kohler Engine
Powered by a 6.5hp OHV Kohler engine. Kohler is a well proven and reputable American brand.

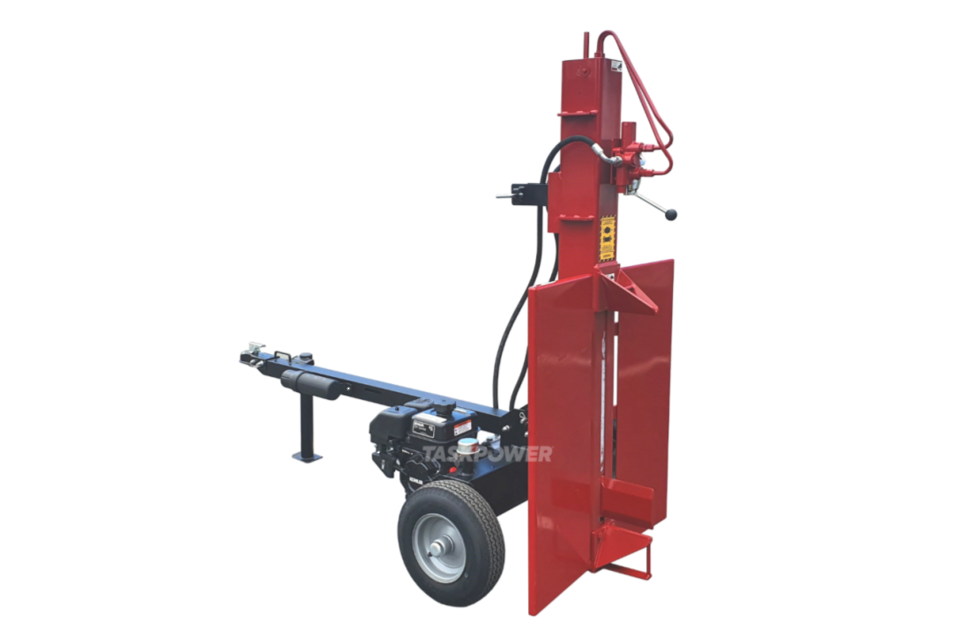

Horizontal/vertical operation
Can be operated in the vertical position for splitting heavy, large diameter logs
Flip-up Jack Stand
Quick and convenient, the flip-up jack-stand is easily positioned for towing or stationary use.
