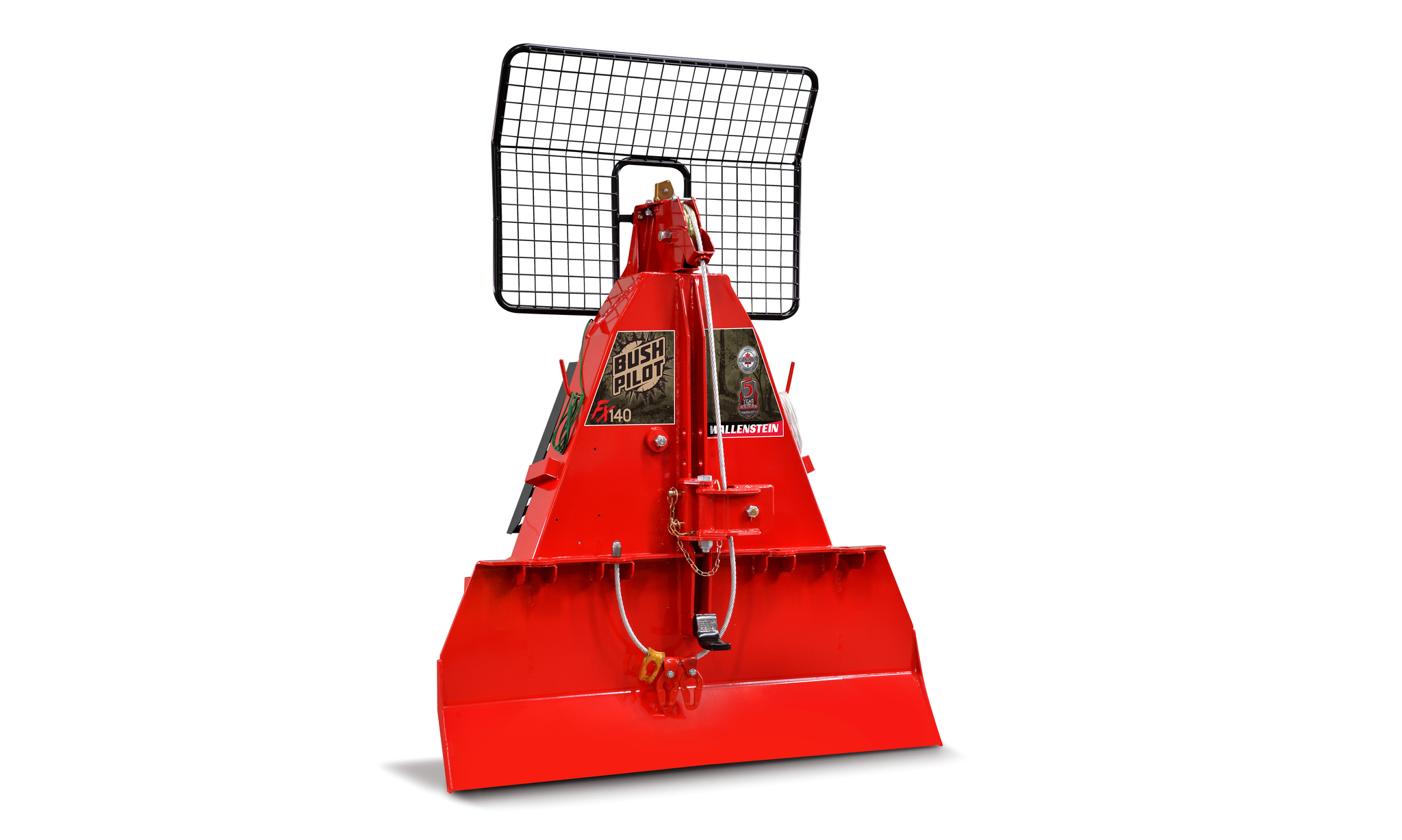

The largest of the Wallenstein FX skidding winches with plenty of pulling power to haul logs weighing up to 6 Tons. Suitable for 80 - 120hp tractors.
Specifications
Pulling Capacity: 14000 lbs (6350 kg)
Tractor HP Range: 80 - 120HP
Winch Type: Mechanical, Dry Disc Clutch
Line Speed: 98 - 246 ft-min (30 - 75 m/min)
Cable: Steel, 1/2" Dia., 165ft long (13mm x 50m)
Choker Chains: 2
PTO Input Speed: 540rpm
Weight: 898 lbs (407 kg)
Dimensions (LxWxH): 28" x 59" x 80" (71 cm x 150 cm x 203 cm)
Mounting System: Cat II
Warranty
Wallenstein guarantees it to be free of defects in materials and workmanship under normal use for: 5 Years Domestic or 2 Years Commercial
