2 or 4-WAY TRACTOR POWERED LOG SPLITTER

The Split-Fire 3403 - the fastest tractor powered splitter in the market. 2 men will find it difficult to keep up with these super-efficient units. Unlike many 4-way splitters on the market, Split-Fire's 'floating blade' design allows the 4-way knife to 'ride up' to prevent wood being jammed beneath the wings. Fast, Effective, Tough, Powerful - invest in a 3403 today!

FREIGHT FREE TO YOUR NEAREST MAINFREIGHT DEPOT WITHIN NZ

See more below:

Video Gallery

Key Features

Reviews

Accessories


Safety

Safety is the purchaser's responsibility. As standard this machine is not designed for workplace use, as it features a single operator lever.

If you're looking to use this machine for business use, please also purchase our Dual Handle Control System here.




Specifications
  • Product Code: 3403
  • Oil Flow Requirements: 6gpm+
  • Cycle Time: 9 sec.@12 gpm / 14 sec.@8 gpm / 28 sec.@4gpm
  • Stroke Length: 24" / 600mm
  • Ram Size: 3½"
  • Knife Height: Both 2-way and 4-way 9½" / 240mm, Heat treated steel
  • Overall Width: 840mm
  • Overall Length: 1920mm
  • Overall Height: 600mm
  • Weight: 180kg
Warranty
  • 12 Months from purchase date
  • Excludes transport, travel and freight
  • Warranty is void if machine is modified
Shipping & Payment

Freight options are as follows.

  • $0.00 delivery to your nearest Mainfreight Depot.
  • $35.00 +GST delivery to main towns around NZ
  • $75.00 +GST delivery to rural addresses

Shipping takes approx 3-4 working days to your nearest Mainfreight Depot, and up to 7 working days for delivery to rural addresses.

Payment can be made online via Direct Bank Transfer or Credit Card.

Gallery

>

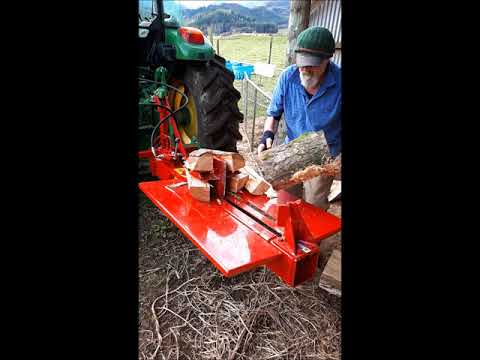

3403 Splitting Gum. Wairau Valley, Marlborough.

>

Split-Fire Factory Tour. Ontario, Canada

Key Features

2-Way Splitting System

Split more wood in less time with less effort! Split-Fire is the pioneer 2-way split design. The hydraulic ram is inside a steel frame with the knife protruding up between 2 "V" shaped anvils. This means the knife is always in the splitting position removing the time wasted during the return cycle.

2 & 4-way interchangeable knives

The Split-Fire 3403 comes with both 2-way and 4-way knives. Quickly swapped over in a few seconds with no tools required. Use the 2-way knife on large diameter and tough knotty logs and the 4-way knife on smaller straight grained logs.

Box Section Beam

Eliminate the possibilities of any bending with Split-Fire's unique box-section beam

"V"-shaped anvils

Split-Fire's "V"-shaped anvil design focuses the tonnage on the centre of the log and enables the log to effortlessly hinge open. This makes for a far safer splitting experience by preventing dangerous "flyouts" of tensioned wood.

Large Flat Tables

All Split-Fire log splitters come with large work tables. These can easily be removed to be replaced with our optional Extra-Large table or Log Lifter kit

Cat I or cat II

All 3Pt Linkage models are compatible with Category I and Category II linkages.

Pointed Quick Couplers

All Split-Fire 3 Point Linkage log splitters come complete with hydraulic hoses and pointed quick couplers.

Canadian Made Quality

Split-Fire log splitters have been designed and engineered over the past 35 years to provide the best 2-way splitter on the market. Every Split-Fire log splitter and hydraulic cylinder are built in-house using only high quality North American steel and components.
