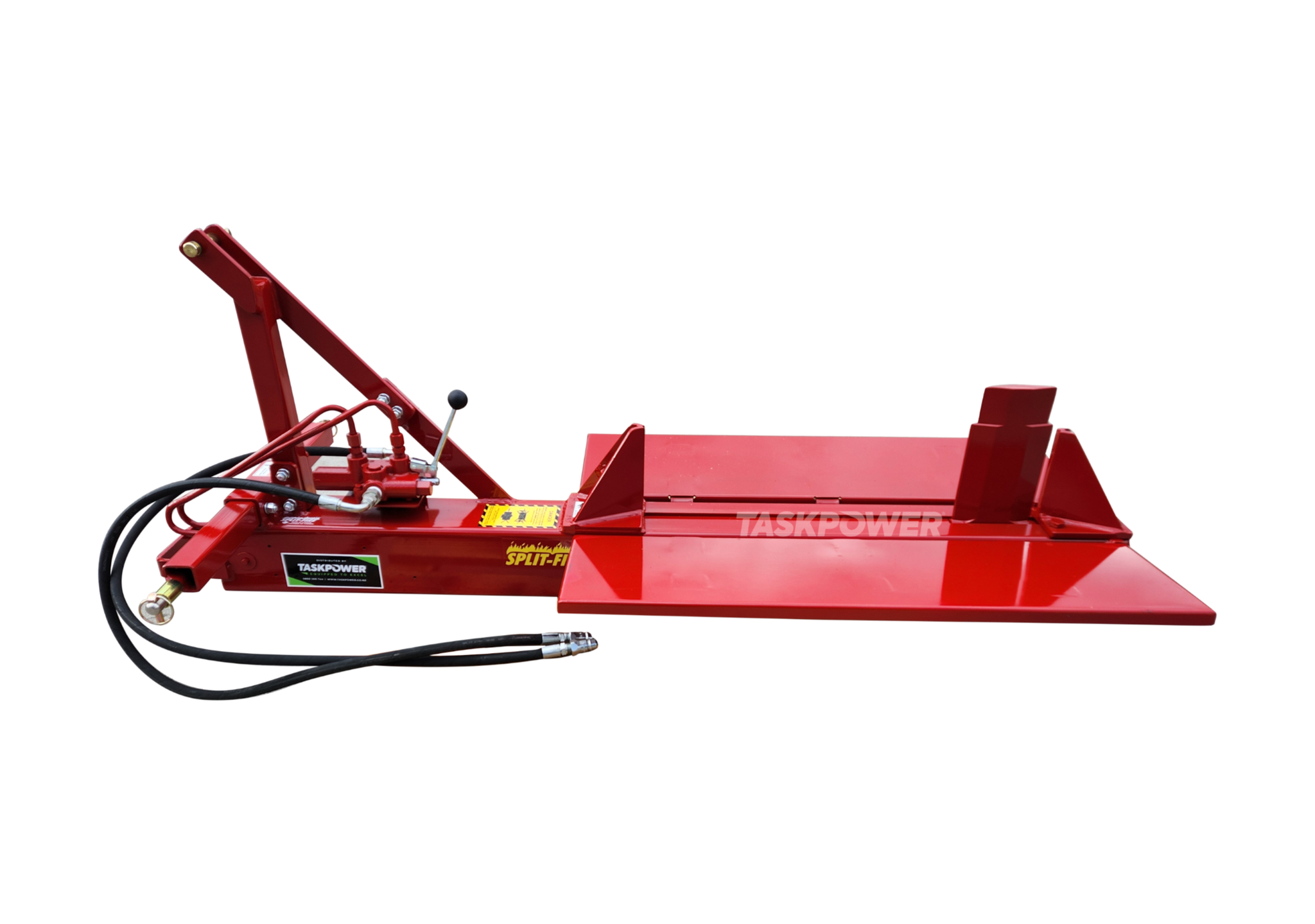

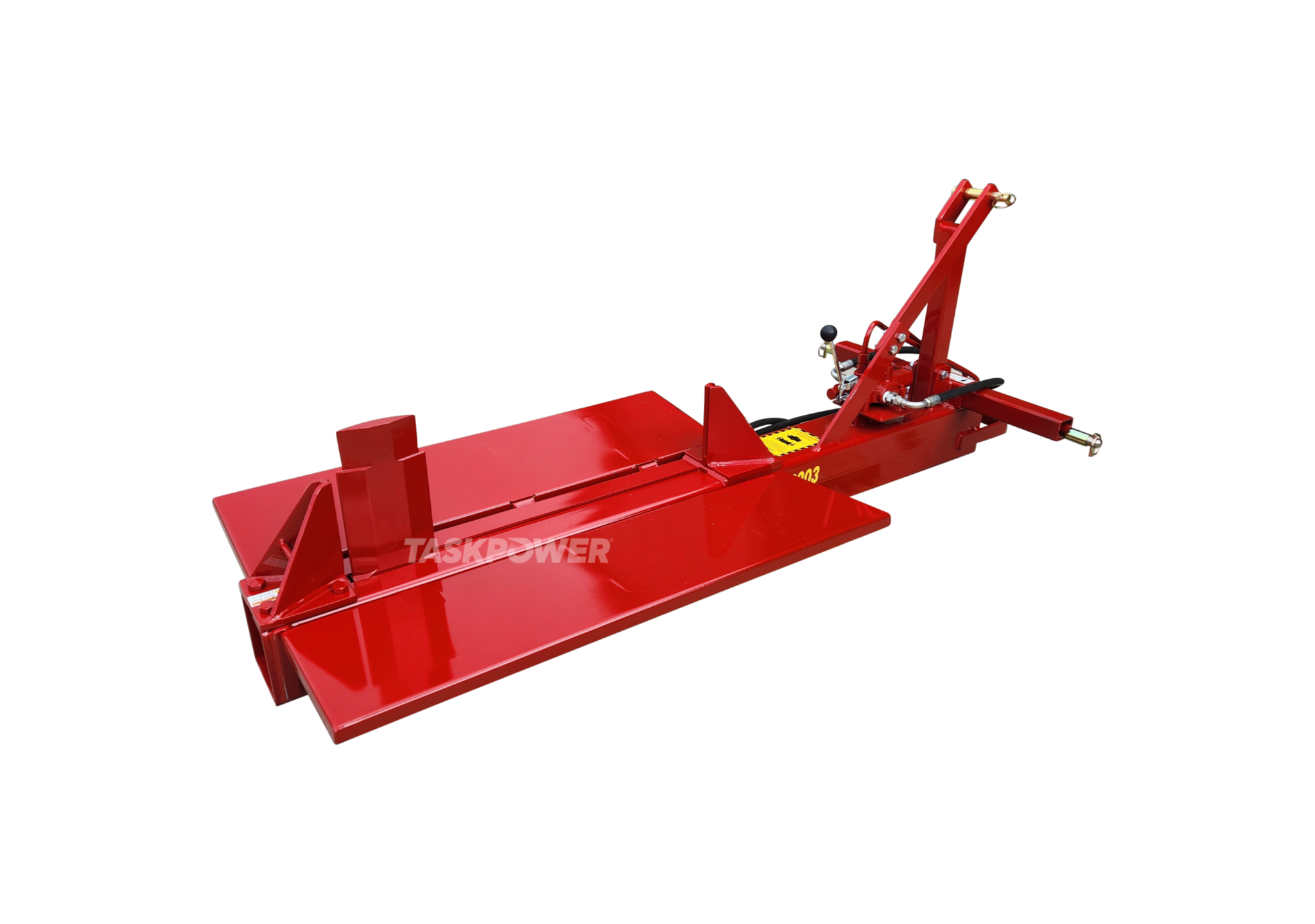

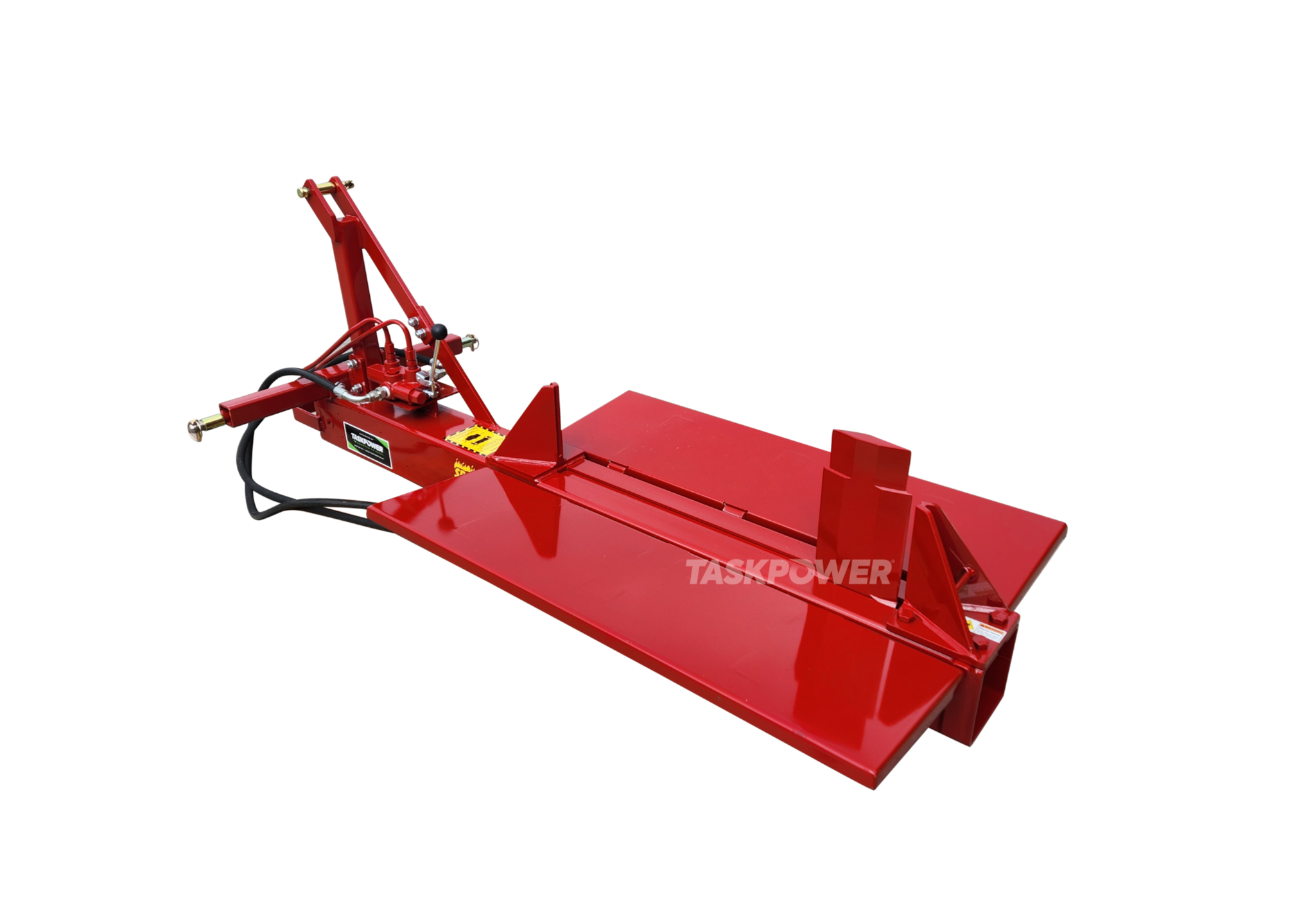

Split-Fire 3203 - 3.5" Ram 2-Way Log Splitter
Split-Fire 3203 - 3.5" Ram 2-Way Log Splitter
Split-Fire 3203 - 3.5" Ram 2-Way Log Splitter

Split-Fire 3203 - 3.5" Ram 2-Way Log Splitter

$4,420.00$0.00Excl GST
Quantity
Freight Free to your nearest Mainfreight Depot*

Prices include delivery to your nearest Mainfreight Depot! This makes it easier for you to get the equipment you want. *Excludes certain products. Click here for details.

IN STOCK NOW

The Split-Fire 3203 Tractor Powered hydraulic log splitter is a tough, Canadian-made machine with Split-Fire's unique dual action operation - greatly saving time when splitting wood. Highly popular for its versatility, efficiency and robust design. Capable of fitting most tractors with its minimum flow requirement of 8 gallons/min ( 36 L/min), the 3203 will effortlessly split most firewood timbers found in NZ. Ideal for farmers looking for efficiency, quality and reliability.

What this price includes:
  • FREIGHT to your nearest Mainfreight or Toll freight Depot - more options under 'Shipping & Payment' below
  • Hydraulic hoses and Quick Release Couplings
  • Cat1 or Cat 2 linkage pins and bushes
  • 12mths manufacturer's warranty - see more below
  • Price excludes GST

See more below: Key Features | Reviews | Accessories



We stock a full range of parts here in our Nelson warehouse.

Payment can be made online via Direct Bank Transfer or Credit Card.

Safety

Safety is the purchaser's responsibility. As standard this machine is not designed for workplace use, as it features a single operator lever.

If you're looking to use this machine for business use, please also purchase our Dual Handle Control System here.

Specifications
  • Product Code: 3203
  • Oil Flow Requirements: 6gpm+
  • Cycle Time: 9 sec.@12 gpm / 14 sec.@8 gpm / 28 sec.@4gpm
  • Stroke Length: 24" / 600mm
  • Ram Size: 3½"
  • Knife Height: 8" / 200mm, Heat treated steel
  • Overall Width: 840mm
  • Overall Length: 1920mm
  • Overall Height: 600mm
  • Weight: 155kg
Warranty
  • 12 Months from purchase date
  • Excludes transport, travel and freight
  • Warranty is void if machine is modified
Shipping & Payment

Freight options are as follows.

  • $0.00 delivery to your nearest Mainfreight Depot.
  • $60.00 +GST delivery to main towns around NZ
  • $120.00 +GST delivery to rural addresses

Shipping takes approx 3-4 working days to your nearest Mainfreight Depot, and up to 7 working days for delivery to rural addresses.

Payment can be made online via Direct Bank Transfer or Credit Card.

Customer Reviews

Based on 5 reviews
100%
(5)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
M
Marcus Gawler
Wood splitter

Have done around 10 cube of pine ,very impressed with how the splitter works cuts through even the real knotty blocks very pleased

S
S.B.
Great machine!

Great machine! And it gets heavy use. I bring it out and give it a good thrashing, - no issues at all. Have done heaps of wood, about 30 cord or more. Simple to use too.

G
G.G.
Fast efficient and safe.

Absolutely Sweet! I am over the moon with it. A very awesome machine. Fast efficient and safe. I love it!

D
D.G.
We're absolutely stoked, it's awesome!

It works really well, a brilliant product. We've split up a fair bit of stuff with it, probably 2 or 3 container loads last season, that kept about 4 households going. We tried it on the Blue-Gum - it hits that really well. We're absolutely stoked, it's awesome!

C
C.O.
Splitting the wood both ways is brilliant

Beaut machine. Splitting the wood both ways is brilliant. Don't know why anyone would choose a single action machine after using this.

Gallery

>

Split-Fire Factory Tour

Key Features

2-Way Splitting System

Split more wood in less time with less effort! Split-Fire is the pioneer 2-way split design. The hydraulic ram is inside a steel frame with the knife protruding up between 2 "V" shaped anvils. This means the knife is always in the splitting position removing the time wasted during the return cycle.

Box Section Beam

Eliminate the possibilities of any bending with Split-Fire's unique box-section beam

"V"-Shaped Anvils

Split-Fire's "V"-shaped anvil design focuses the tonnage on the centre of the log and enables the log to effortlessly hinge open. This makes for a far safer splitting experience by preventing dangerous "flyouts" of tensioned wood.

Large Flat Tables

All Split-Fire log splitters come with large work tables. These can easily be removed to be replaced with our optional Extra-Large table or Log Lifter kit

Cat I or Cat II

All 3Pt Linkage models are compatible with Category I and Category II linkages.

Pointed Quick Couplers

All Split-Fire 3 Point Linkage log splitters come complete with hydraulic hoses and pointed quick couplers.

Canadian Made Quality

Split-Fire log splitters have been designed and engineered over the past 35 years to provide the best 2-way splitter on the market. Every Split-Fire log splitter and hydraulic cylinder are built in-house using only high quality North American steel and components.
