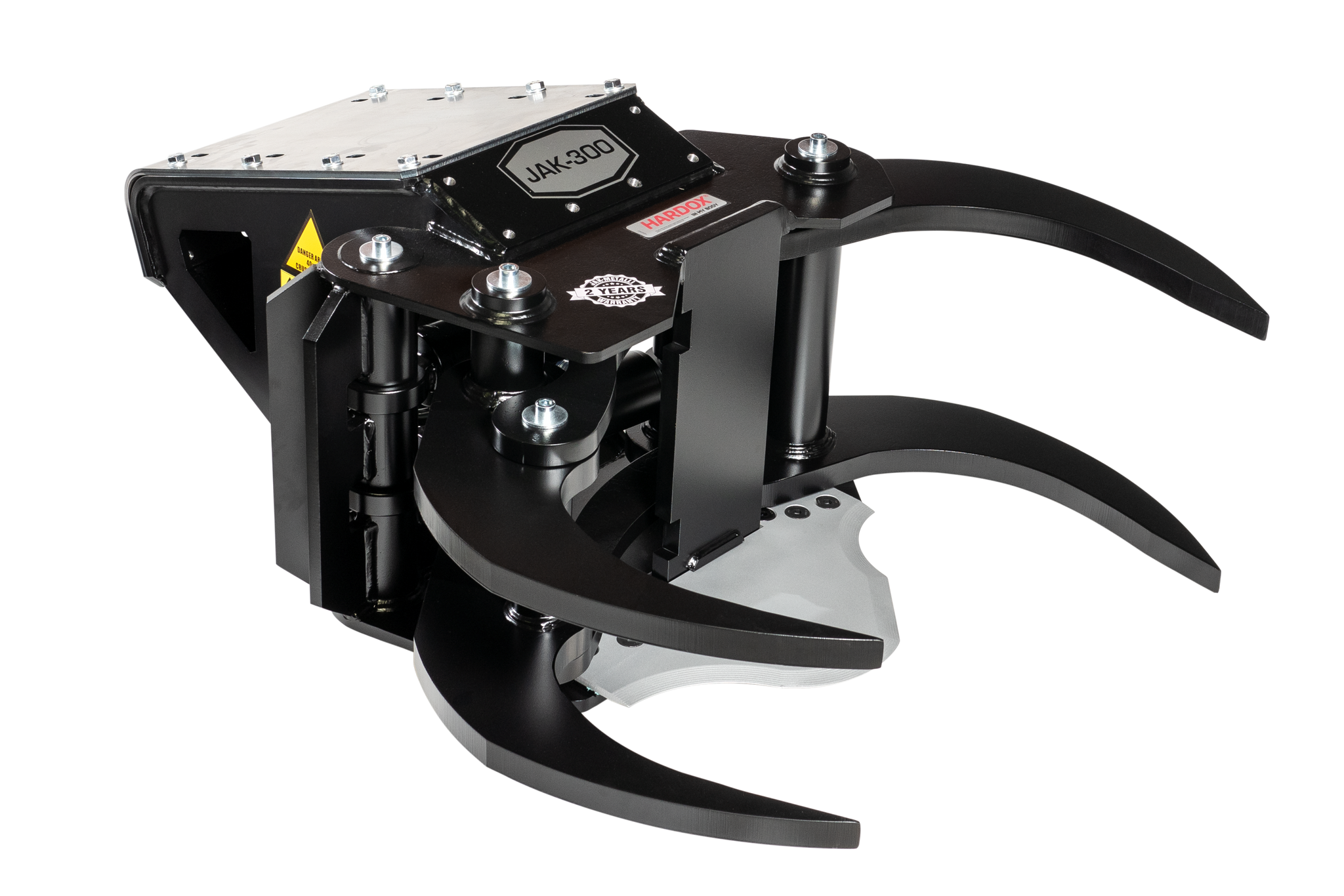

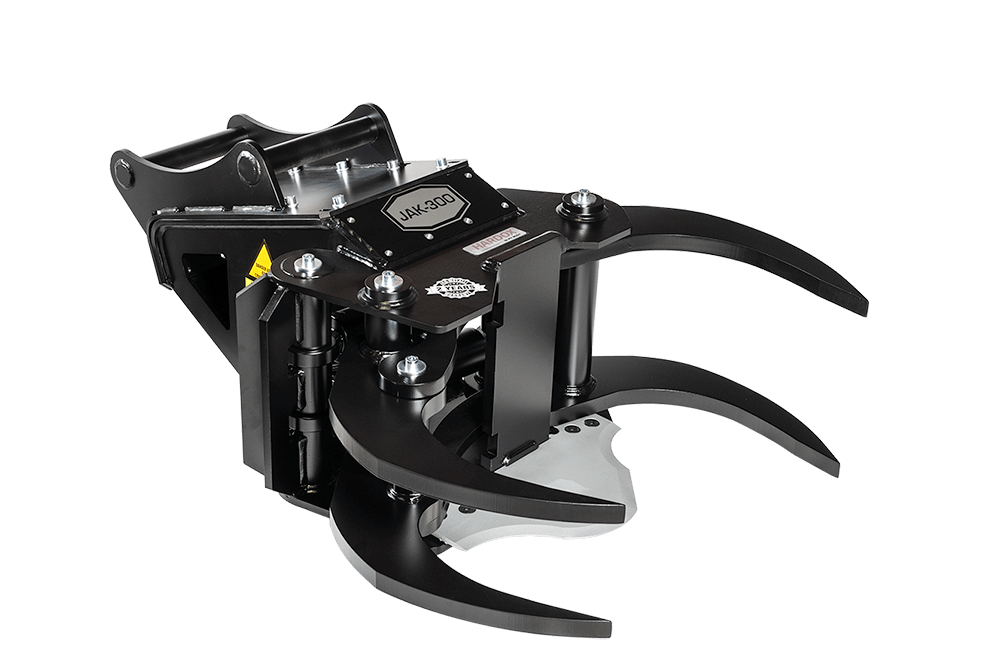

JAK-300 is our most robust tree shear for excavators. It is designed for use on excavators weighing more than 12 tons (26455 lbs). Due to its size, JAK-300 is ideal for felling larger trees in particular, but it is also ideal for clearing smaller crops.

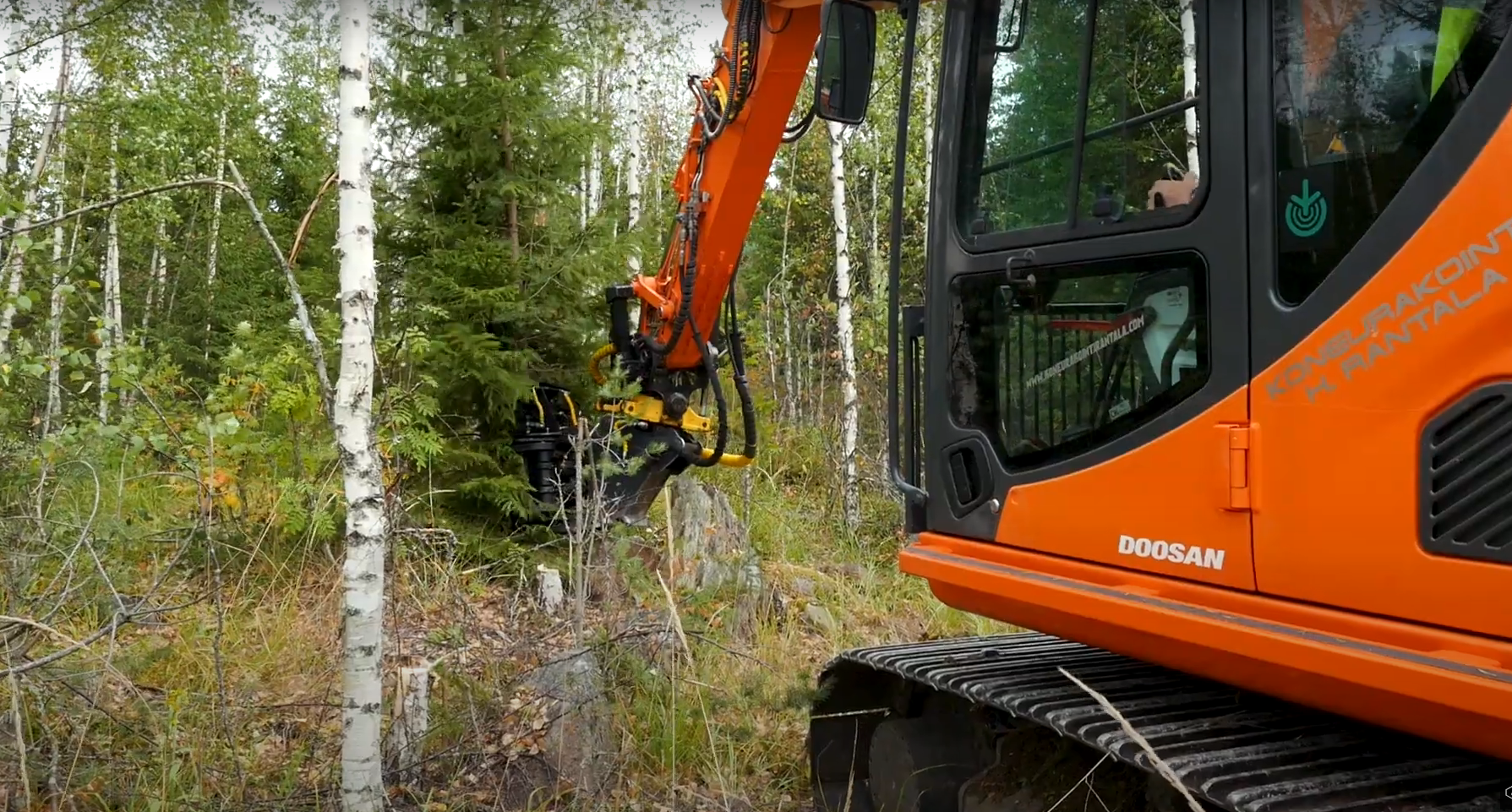

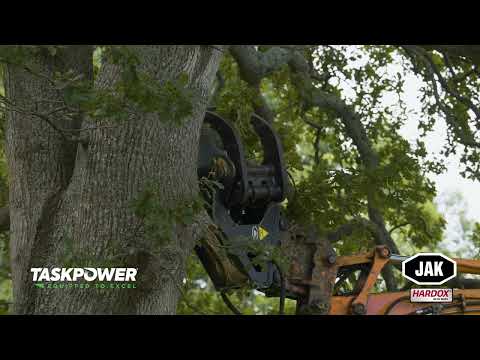

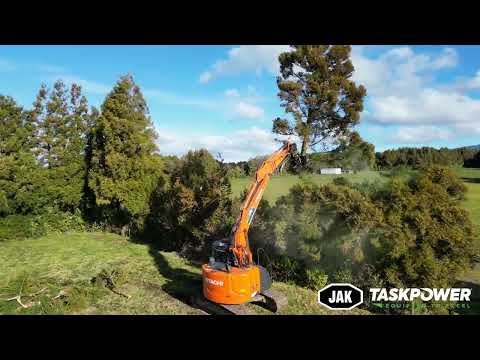

Designed for use in large scale excavators, JAK-300 cuts the wood to be harvested neatly and precisely at the desired point from ground level. However, the efficiency of this tree shear is best noticed when faced with something more challenging than usual. Namely, JAK-300 also cuts larger trees effortlessly up to a thickness of 30 cm (11,8 in).

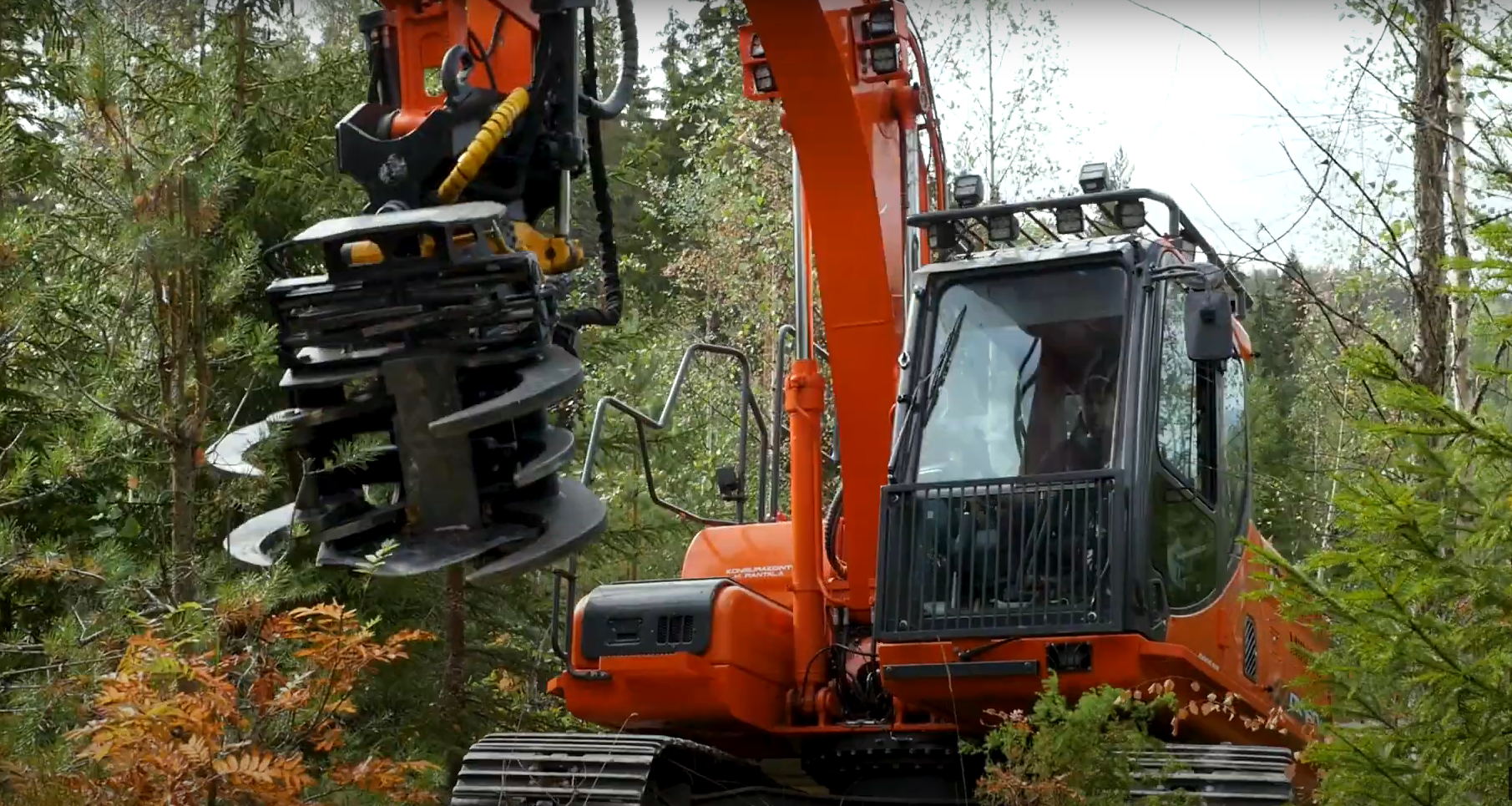

The jaws of the JAK-300 take an unmistakable grip on any wood. The wood that is firmly pressed by the shear is neatly cut thanks to the cutting blade. With the wide opening of the shear, several trees can also be cut at once, and the cutting force of the shear does not clot even with high mass. The high profile of JAK-300 ensures a firm grip on the wood during handling.

If necessary, the cutting blade can also be removed, in which case the tree shear acts as a wood grapple.

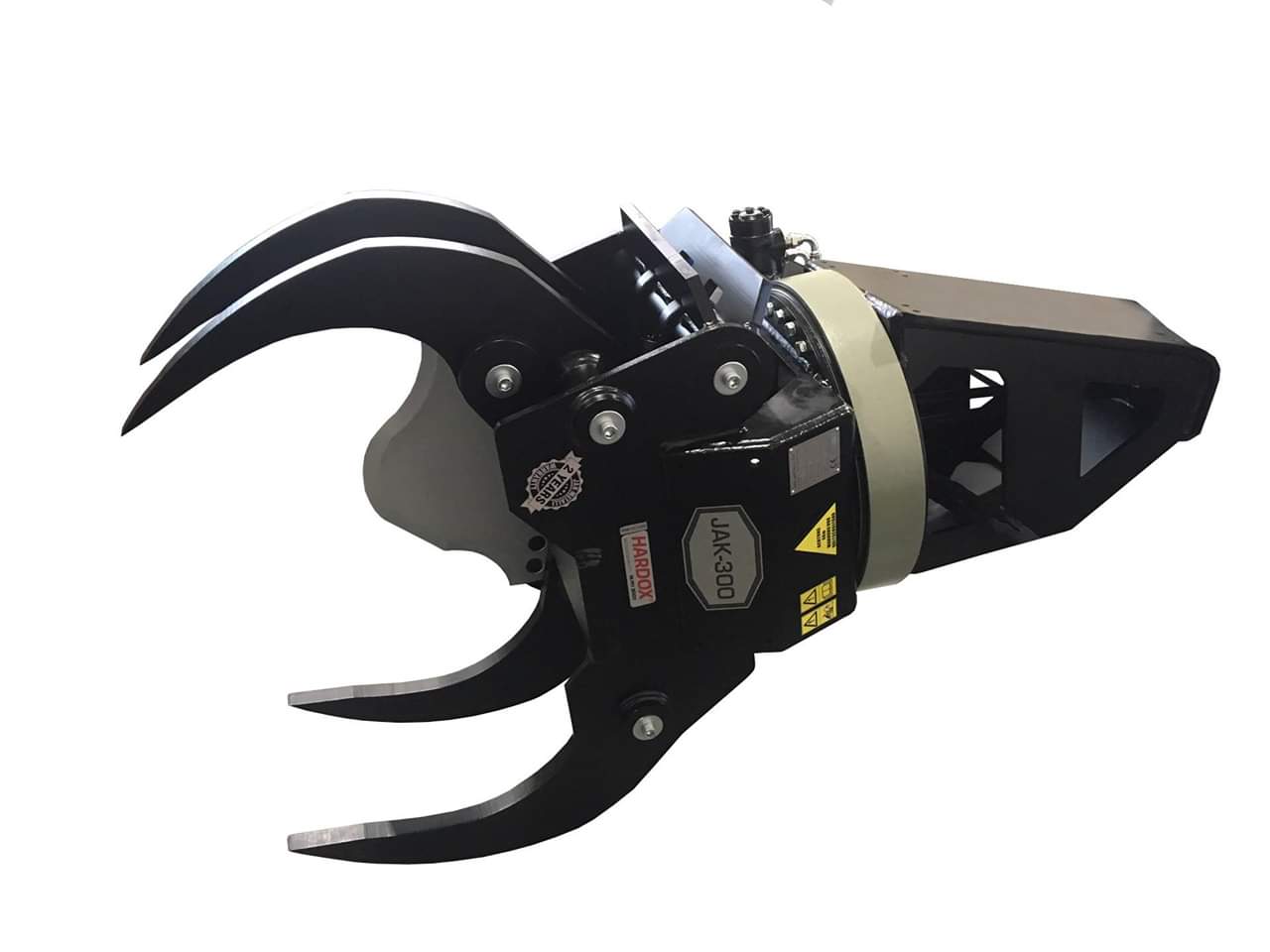

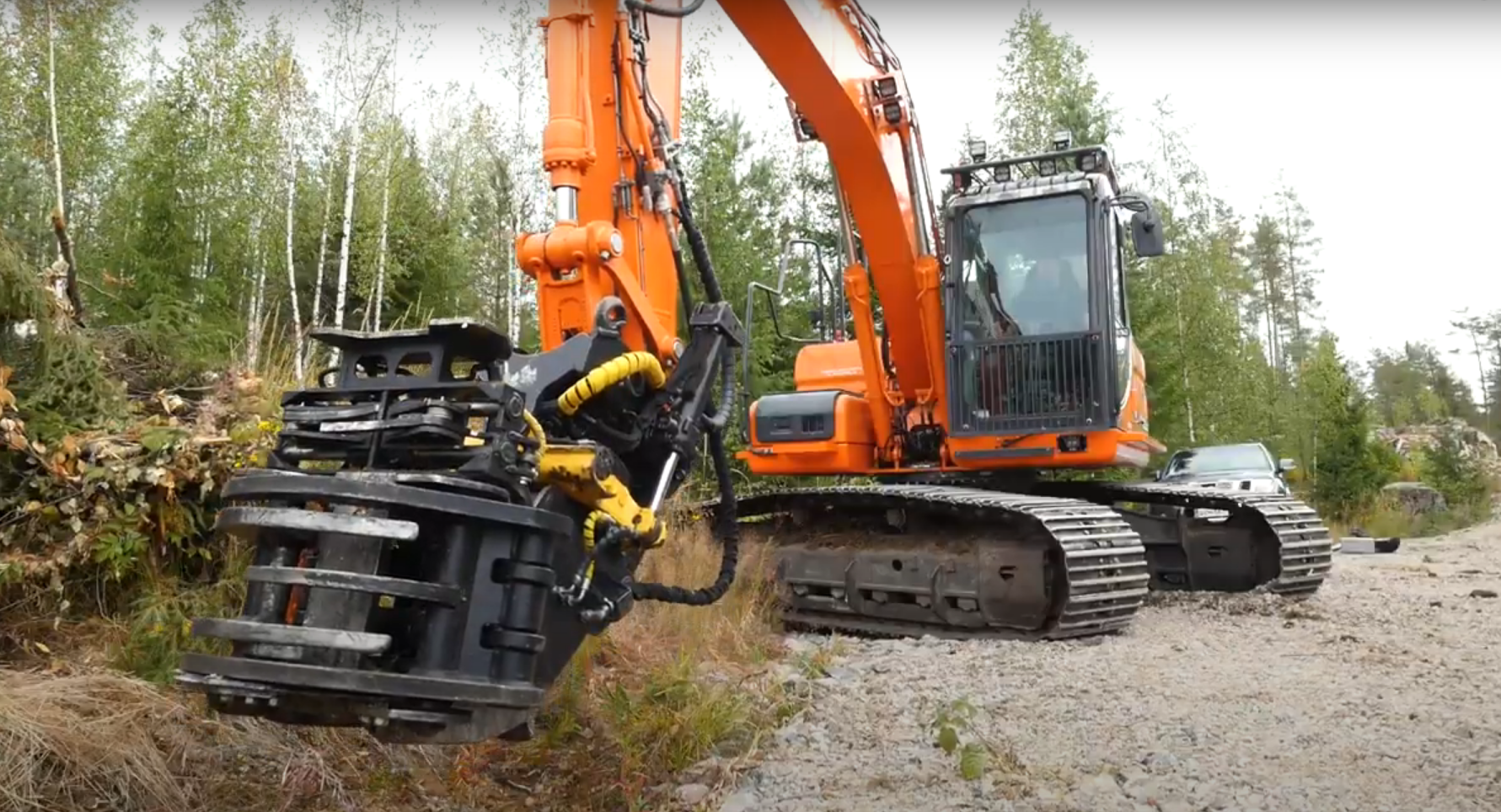

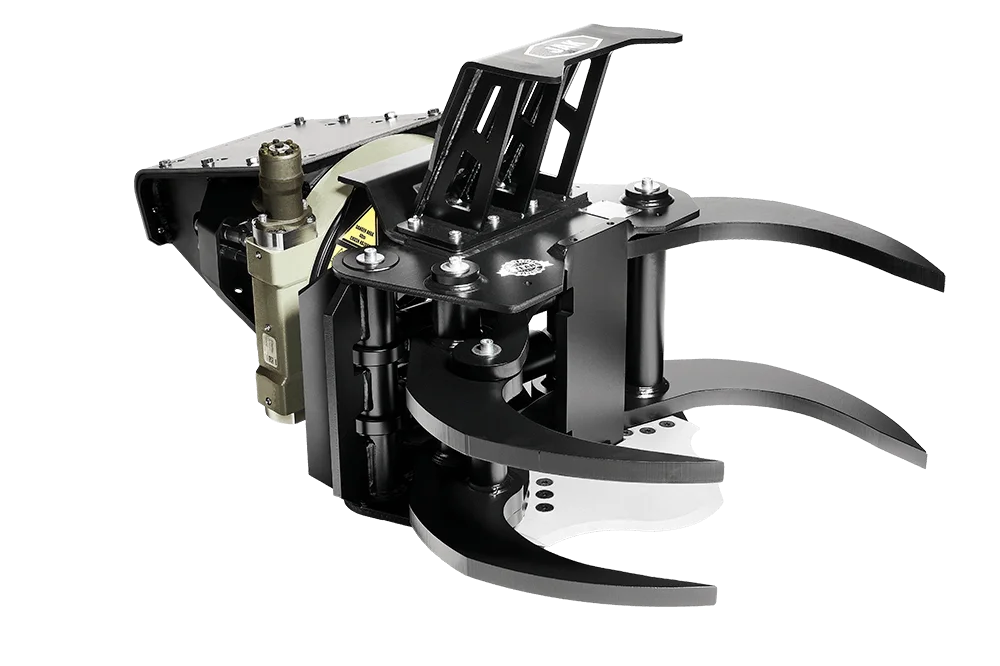

Some pictures show this machine with the optional rotator.

Specifications

Weight: 570kg

Max Cutting Diameter: 300mm*

Working Pressure: 3600-4350psi

Min Oil Flow: 60L/min

Grapple Opening: 840mm

Impact Plate Height: 505mm

*Note: cutting diameter is maximum only for soft wood. Hardwood reduces effective cutting diameter. Maximum cutting capacity is only achieved at max working pressure.

Warranty

24 Months Manufacturers Warranty - T&Cs Apply

Excludes blade, hydraulic hoses, misuse, loss of earnings, transport, travel and freight. Warranty is void if machine is modified.
