JAK250-R Modular Tree Shear - 250mm - 5-12T excavators
Freight Free to your nearest Mainfreight Depot*
Prices include delivery to your nearest Mainfreight Depot! This makes it easier for you to get the equipment you want. *Excludes certain products. Click here for details.
The JAK-250R is an efficient and versatile tree shear model designed for use on excavators weighing 5-12 tons. The power of the JAK-250R is superior in its size class, and it is versatile for clearing small twigs and felling even larger trees. By changing the adapter to be attached to the back of the grapple, it is also possible to harness the JAK-250R for use in loaders and telehandlers.
The structure with two cylinders cuts the trees efficiently and precisely up to a thickness of 25 cm (9,8 in). The jaws and high profile of the JAK-250R tree shear take a firm and unmistakable grip on the wood. With the JAK-250R’s wide 690 mm (27 in) opening, it is also easy to cut several trees at once.
The firmly pressed wood is cut precisely and neatly thanks to a cutting blade shaped for the purpose, after which the wood material firmly attached to the grapple can be lifted to the desired location.
If necessary, the cutting blade can be removed, in which case the tree shear acts as a wood grapple.

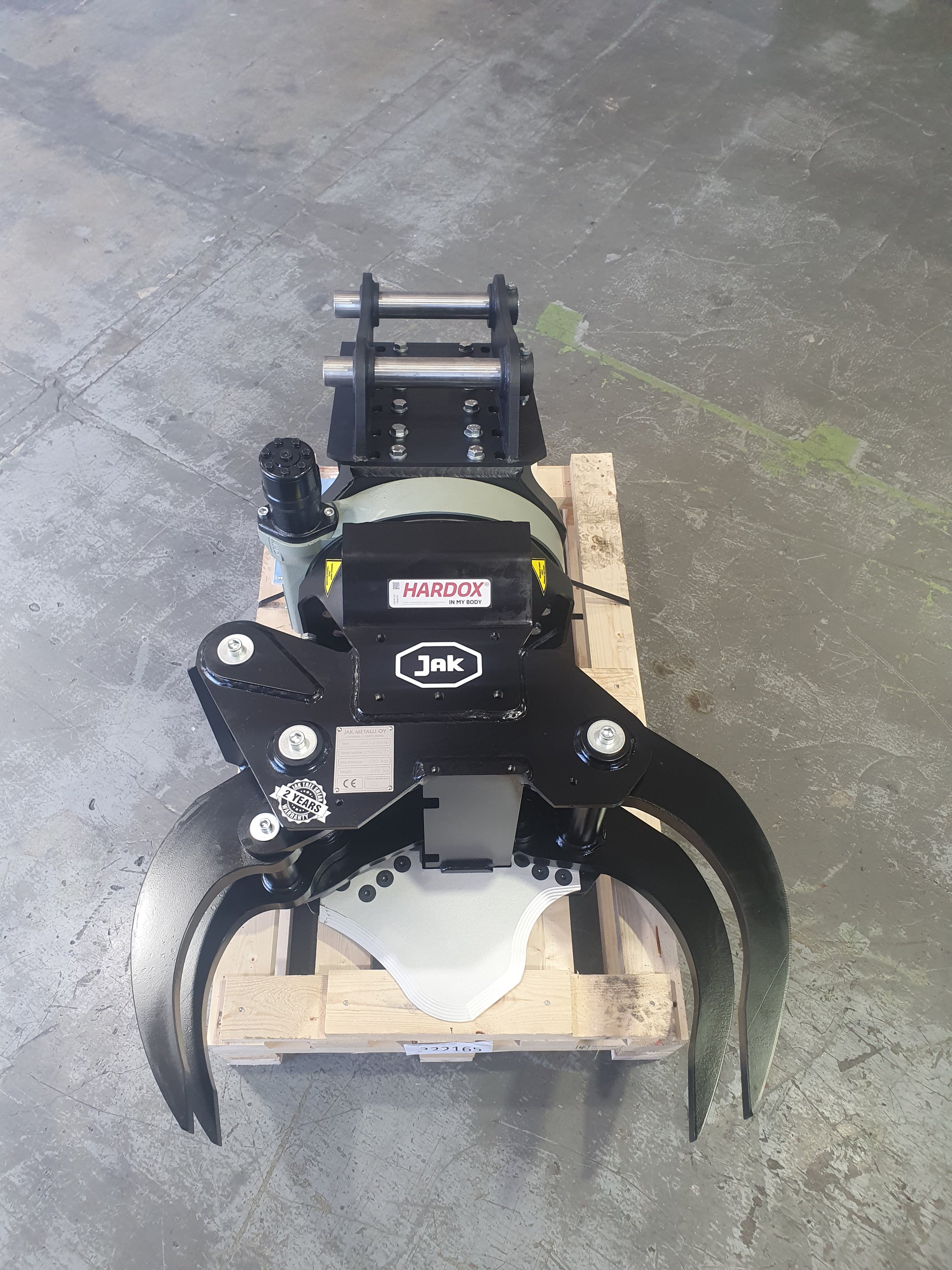

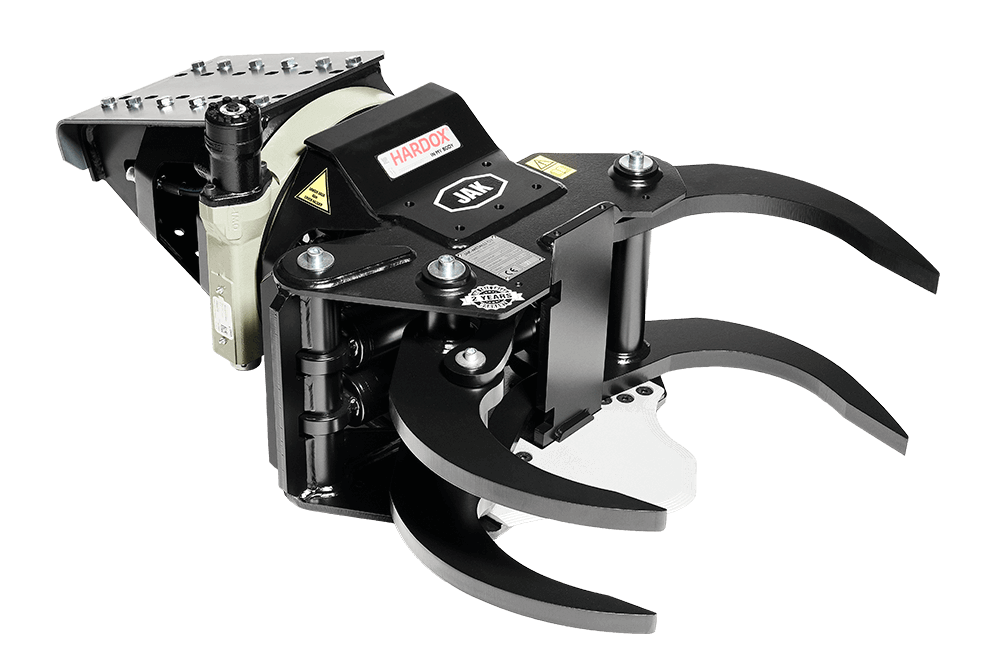

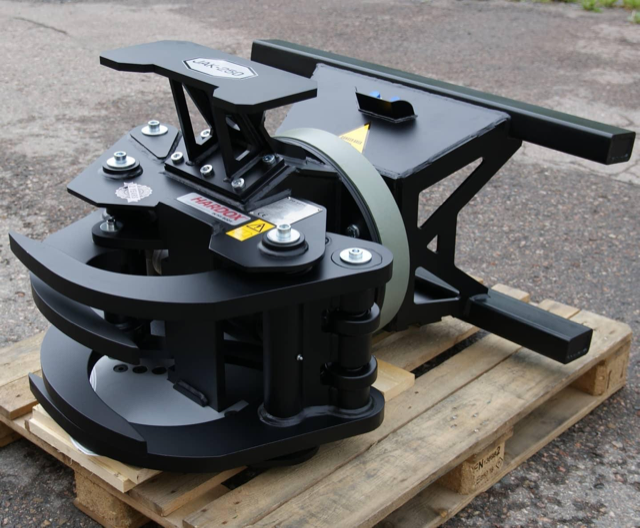

Some pictures show this machine with the optional rotator.
Specifications
Weight: 270kg
Max Cutting Diameter*: 250mm
Working Pressure: 3600-4350psi (Grapple)
Min Oil Flow: 60L/min (Grapple)
Grapple Opening: 690mm
Impact Plate Height: 390mm
*Note: cutting diameter is maximum only for soft wood. Hardwood reduces effective cutting diameter. Maximum cutting capacity is only achieved at max working pressure.
Warranty
24 Months Manufacturers Warranty - T&Cs Apply
Excludes blade, hydraulic hoses, misuse, loss of earnings, transport, travel and freight. Warranty is void if machine is modified.
