The JAK-200R is an efficient and versatile tree shear model designed specifically for use on excavators weighing 1.8-5 tons. The power of the JAK-200R is superior in its size class, and it is versatile for clearing small twigs and felling even larger trees. By changing the adapter to be attached to the back of the grapple, it is also possible to harness the JAK-200R for use in loaders and telehandlers.

The structure with two cylinders cuts the trees efficiently and precisely up to a thickness of 20 cm (8 in). The jaws and high profile of the JAK-200R tree shear take a firm and unmistakable grip on the wood. With the JAK-200R’s wide 600 mm (23.6 in) opening, it is also easy to cut several trees at once.

The firmly pressed wood is cut precisely and neatly thanks to a cutting blade shaped for the purpose, after which the wood material firmly attached to the grapple can be lifted to the desired location.

If necessary, the cutting blade can be removed, in which case the tree shear acts as a wood grapple.

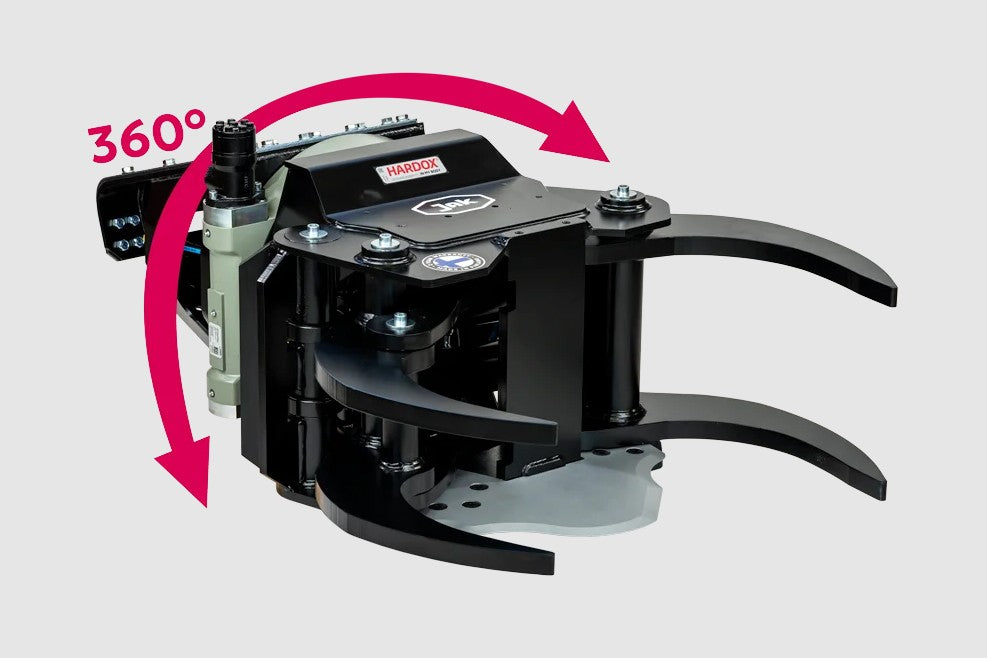

Some pictures show this machine with the optional rotator.

VIEW OUR TREE SHEAR PICTURE & VIDEO GALLERY BELOW

Specifications
  • Product Code: JAK200-R
  • Max Cutting Diameter: 200mm*
  • Suitable Excavator Size: 1.8 - 5T
  • Working Pressure: 3600-4350psi
  • Required Oil Flow: 30 - 80L / min
  • Grapple Opening: 600mm
  • Impact Plate Height: 310mm
  • Weight JAK200-R: 140kg
  • Weight Rotator: 57kg

*Cutting diameter is maximum only for soft wood. Hardwood reduces effective cutting diameter. Maximum cutting capacity is only achieved at max working pressure.

Warranty
  • Shear - 24 months
  • Rotator - 12 months
  • Excludes blade, hydraulic hoses, misuse, loss of earnings
  • Excludes transport, travel and freight
  • Warranty is void if JAK is modified

Shipping

Item is Freight Free to your nearest Mainfreight Depot.

We can freight anywhere in NZ - usually for small additional cost. Please ask for a quote.
