  • Dual Hydraulic Roller Feed
  • 10" Capacity
  • 80 - 120HP Tractor Range
What's Included
  • Freight to your nearest Mainfreight/Toll Depot
  • PTO Shaft

10" Capacity, 65-150hp tractors 10" PTO Powered Chipper
The BX102R is the largest chipper in the Wallenstein family. This enormous unit, with its 190kg rotor and 907kg bulk, will effortlessly eat a 250mm branch! Perfect for large contractors, arborists, avocado or other large-tree orchardists, or farmers looking to make chip for calf bedding. It comes in 4 models:
BX 102R - The base model BX102R has the hydraulic roller feed.
BX102RI - BX102R, with Intellifeed electronic infeed control system. Monitors rotor revs and adjusts hydraulic roller feed to suit.
BX102RP - BX102R, with hydraulic top roller lift with 1800lbs crush force, and winch with 550kg pull force.
BX102RPI - The BX102R with all the goodies! Intellifeed, winch and hydraulic top roller lift.

See more below:

Video Gallery

Key Features

Reviews

Accessories

Specifications

Max Chipping Capacity: 10 inch

Tractor Size Range: 80 - 120hp

Feed System: Dual Hydraulic Roller Feed

Required Hydraulic Flow: 4 - 8 gpm / 15 - 30 lpm

Rated RPM: 540 - 1000rpm

Mount: Tractor 3 Point Linkage

Chipper Housing Opening: 10" x 17" / 25 cm x 43 cm

Rotor Size: 36" / 92cm Diameter @ 193kg

Knives: 4 x Reversible Knives

Discharge Height: 100" / 253cm

Dimensions Open (LxWxH):  108" x 85" x 100" / 273 cm x 215 cm x 253 cm

Dimensions Folded (LxWxH): 85" x 71" x 100" / 215 cm x 180 cm x 253 cm

Weight: 1950lbs / 885kg

Warranty

Wallenstein guarantees it to be free of defects in materials and workmanship under normal use for: 5 Years Domestic or 2 Years Commercial

Warranty

Wallenstein guarantees it to be free of defects in materials and workmanship under normal use for:

  • 5 Years Domestic use
  • 2 Years Commercial use

Key Features

360 degree Rotating Outlet Chute

Easily control where you want the chips with the double adjustable exit chute. The chute swivels 360 degrees and the top deflector adjusts up or down.

4 x Reversible Blades

The reversible blades are precision cut tool steel and hardened, keeping a sharp cutting edge and maximizing the performance of the chipper. Doubling the life-time of your chipper blades.

Oversized Heavy Duty Rotor

The large diameter rotor has a faster blades speed for improved chipping action and the heavy gauge steel retains momentum to power through tough branches.

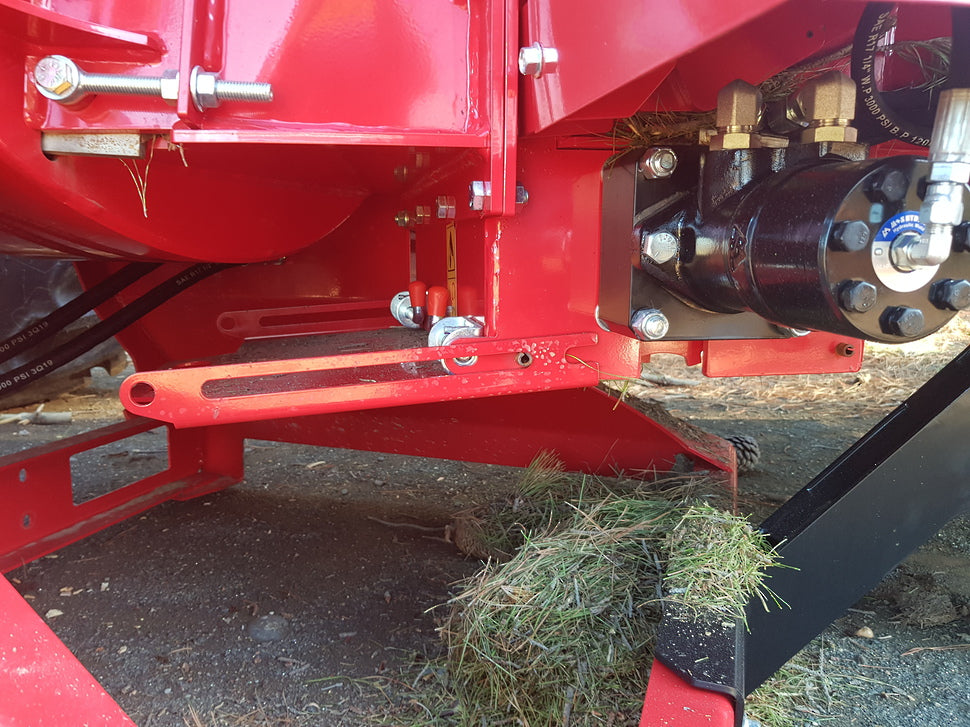

Dual Active Rollers

Hydraulically powered top and bottom feed rollers grip and pull branches directly into the chipper.

P3 Pulse Intellifeed

The P3 Pulse controller enhances the machines power, performance and productivity.

Safety Control Bar

Forward / Reverse control with two stop positions.

Twig Breaker

The discharge paddle passes around the twig breaker and helps to break up any twigs into smaller particles before discharging.

Canadian Made

Genuine Wallenstein quality, made in Ontario Canada.
