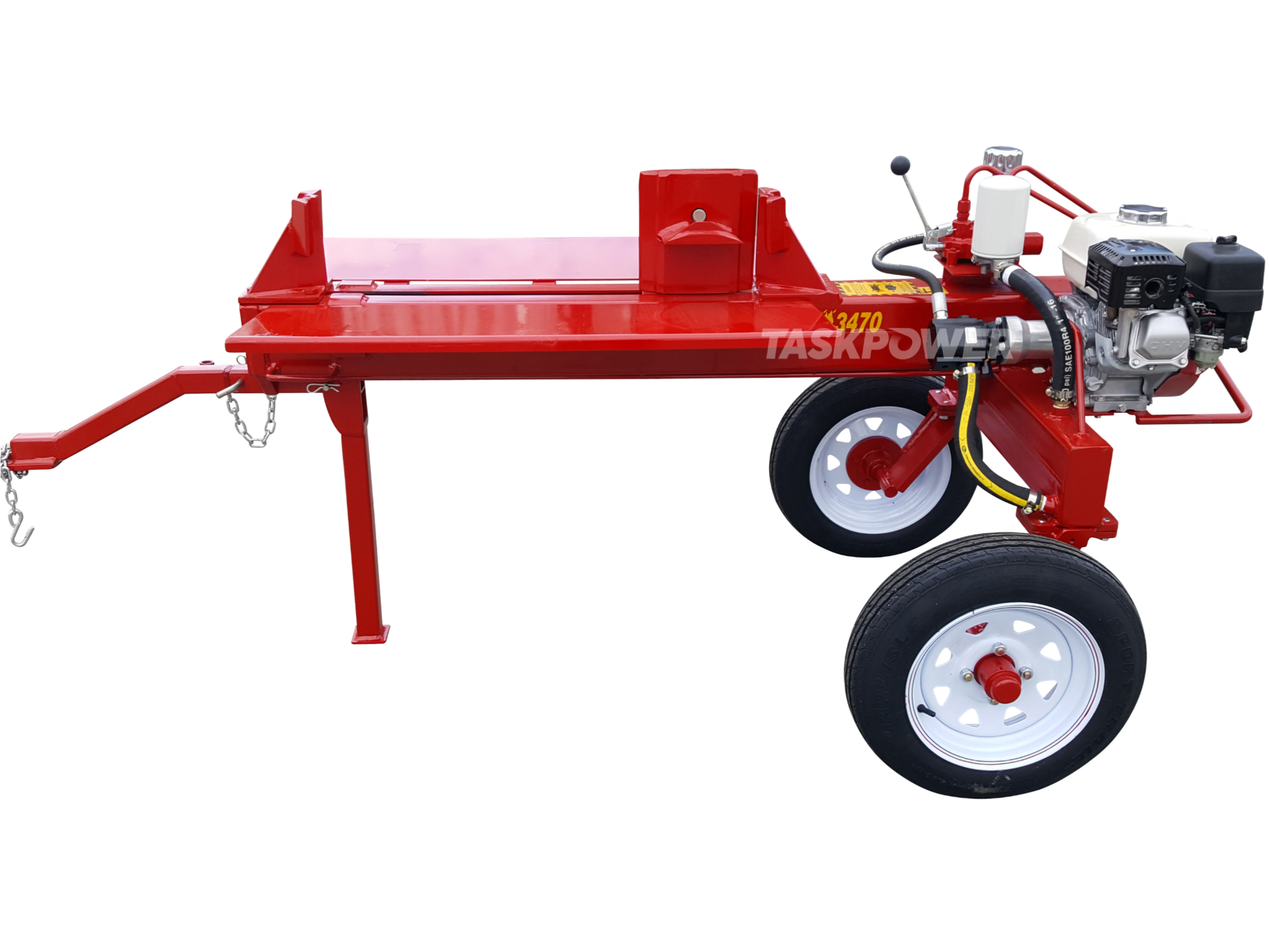

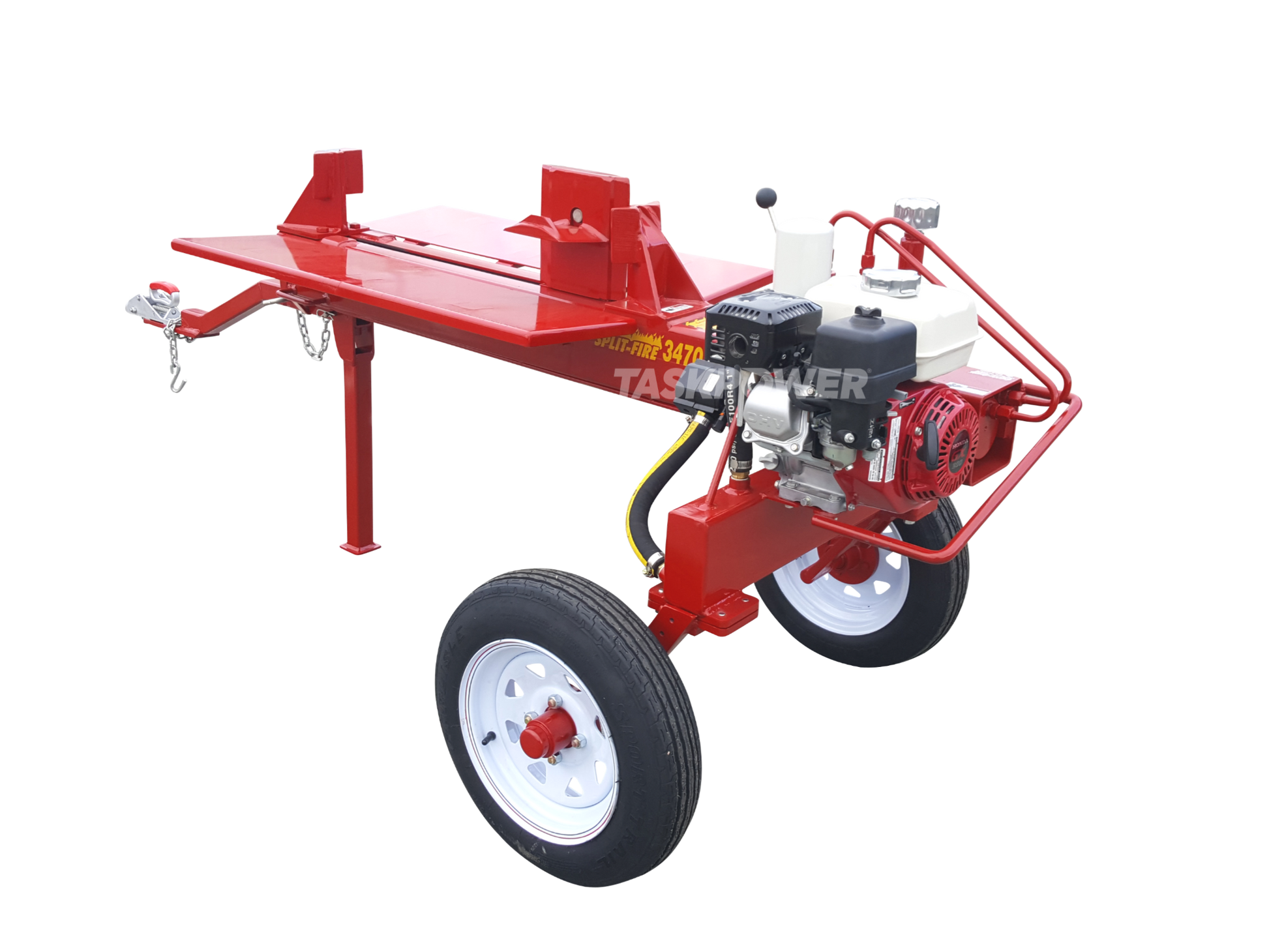

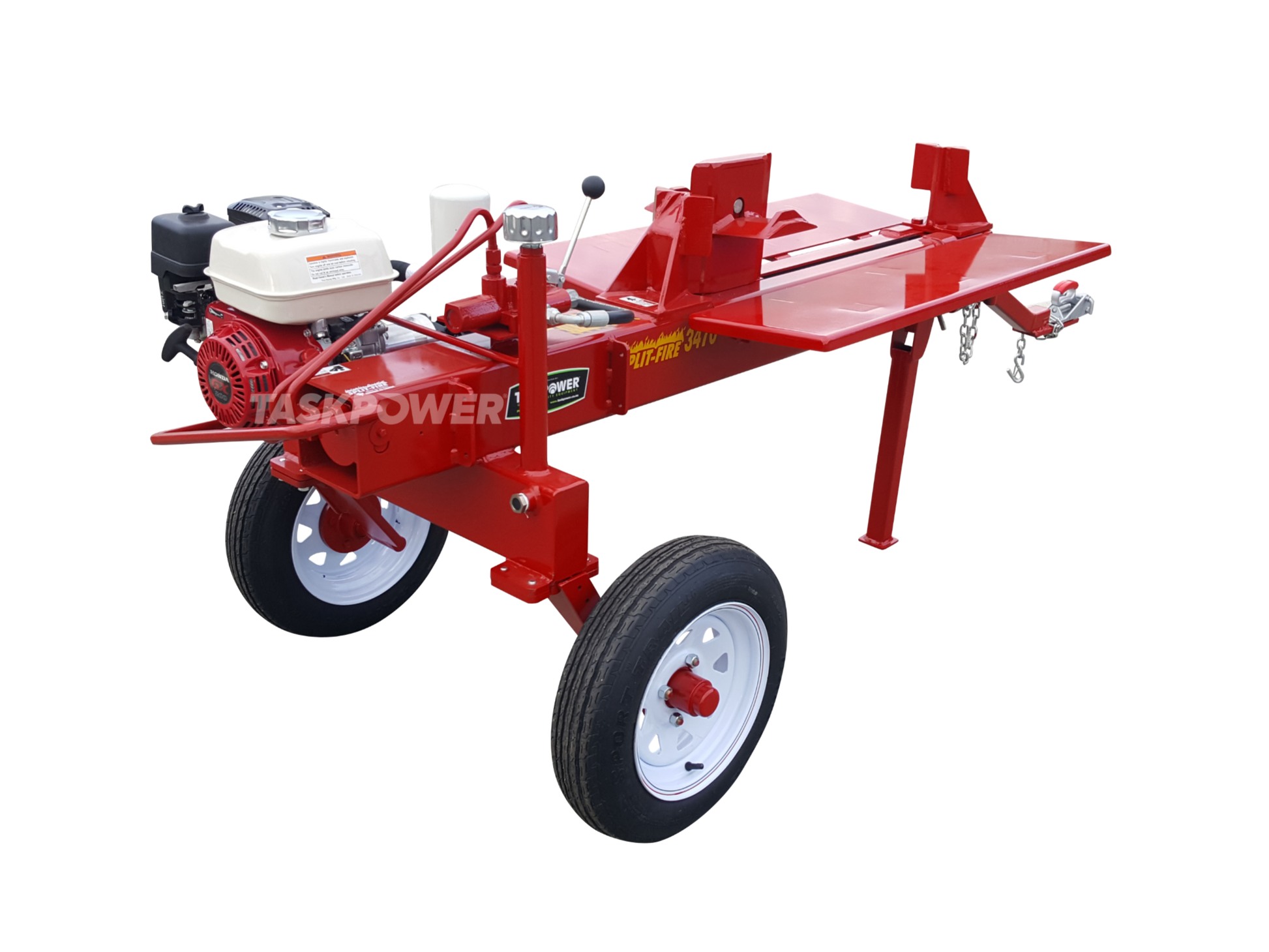

Split-Fire 3470
Split-Fire 3470
Split-Fire 3470

Split-Fire 3470

$9,940.00Excl GST
Quantity
Freight Free to your nearest Mainfreight Depot*

Prices include delivery to your nearest Mainfreight Depot! This makes it easier for you to get the equipment you want. *Excludes certain products. Click here for details.

SPEED. POWER. EFFICIENCY. The 3470 will easily deliver on those 3 features; if splitting both directions, every stroke, wasn't enough, now you can split into 4 PIECES EVERY STROKE! And it's not all talk. One 3470 customer split an 8' x 4' trailer load of wood in under 10 MINUTES. Another split 1,700 CUBE IN 1 SUMMER. Invest in a 3470, and you have the fastest, most efficient log splitter available.

See more below:

Video Gallery

Key Features

Reviews

Accessories

Safety

Safety is the purchaser's responsibility. As standard this machine is not designed for workplace use, as it features a single operator lever.

If you're looking to use this machine for business use, please also purchase our Dual Handle Control System here.

Specifications
  • Product Code: 3470
  • Splitting Force: 22 Tons Approx.
  • Cycle Time: 6 seconds per split / 11 seconds total cycle
  • Pump: 2 Stage, 11 Gallons per Minute
  • Stroke Length: 24" / 600mm
  • Ram Size: 3½"
  • Knife Height: Both 2-way and 4-way 9½" / 240mm, Heat treated steel
  • Engine: 6.5HP Honda GX200
  • Wheels: 4.80-12 Highway grade
  • Overall Width: 1020mm
  • Overall Length: 2800mm
  • Overall Height: 1010mm
  • Weight: 260kg
Warranty
  • 12 Months from purchase date
  • Excludes transport, travel and freight
  • Warranty is void if machine is modified
  • Engine warranty covered by engine manufacturer
Shipping

Item is Freight Free to your nearest Mainfreight Depot.

We can freight anywhere in NZ - usually for small additional cost. Please ask for a quote.

Customer Reviews

Based on 4 reviews
100%
(4)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
A
A.L.
Truly is the most amazing machine

Thought I must call and tell you how pleased we are with the splitter. Truly is the most amazing machine. My daughter was using it alongside her husband and friend who were on another $9000 machine, at the end of the afternoon she had produced at least 40% more wood than the 2 other guys! I spread the Split-Fire word wherever I go! Thank you.

B
B.S.
6 cord of wood split in the first 2 hours!

We are very impressed. It is an absolutely amazing machine! We got about 6 cord of wood split in the first 2 hours! I just had to ring and tell you, we are very pleased with it, thank you.

G
G.T.
Certainly the best splitter available

It is absolutely unbelievable. It can work faster than I can! Certainly the best splitter available. Incredible! Incredible! Very pleased that you sold it to me. Thankyou very much

M
M.Q.
...we heaped a 8'x4' trailer in 9 minutes!

Using the 4-way knife on poplar we heaped a 8'x4' trailer in 9 minutes! After 3 trailer loads it had not even used 1/4 tank fuel. The only problem is I now have too much spare time! I don't regret spending the extra money and getting such a fast machine. Thank you for selling it to me

Gallery

>

Split-Fire 3470 Testimonial

>

Split-Fire Factory Tour

Key Features

2-way Splitting System

Split more wood in less time with less effort! Split-Fire is the pioneer 2-way split design. The hydraulic ram is inside a steel frame with the knife protruding up between 2 "V" shaped anvils. This means the knife is always in the splitting position removing the time wasted during the return cycle.

2 & 4-way Interchangeable Knives

The Split-Fire 3470 comes with both 2-way and 4-way knives. Quickly swapped over in a few seconds with no tools required. Use the 2-way knife on large diameter and tough knotty logs and the 4-way knife on smaller straight grained logs.

Box Section Beam

Eliminate the possibilities of any bending with Split-Fire's unique box-section beam.

"V"-shaped anvils

Split-Fire's "V"-shaped anvil design focuses the tonnage on the centre of the log and enables the log to effortlessly hinge open. This makes for a far safer splitting experience by preventing dangerous "flyouts" of tensioned wood.

Large Flat Tables

The 3470 comes standard with large work tables fitted. These can easily be removed to be replaced with our optional Extra-Large table or Log Lifter kit.

Genuine Honda Engine

Powered by nothing less than the best! Genuine Honda OHV GX200 engine.

Removeable drawbar

Remove the drawbar when using the splitter to create a more compact and safe splitting environment.

Canadian Made Quality

Split-Fire log splitters have been designed and engineered over the past 35 years to provide the best 2-way splitter on the market. Every Split-Fire log splitter and hydraulic cylinder are built in-house using only high quality North American steel and components.

Accessories

Split-Fire Log Lifter Kit Free
  • Fits all Split-Fire models
  • Folds for transport & storage
  • Save your back!
View Item
Two Handed Control Lever System $560.00Excl GST
View Item
Split-Fire Extra Large Table $280.00Excl GST
View Item
Split-Fire Suspension Kit $1,180.00Excl GST
View Item
Split-Fire 12" Wheel Guards (Pair) $320.00Excl GST
View Item
